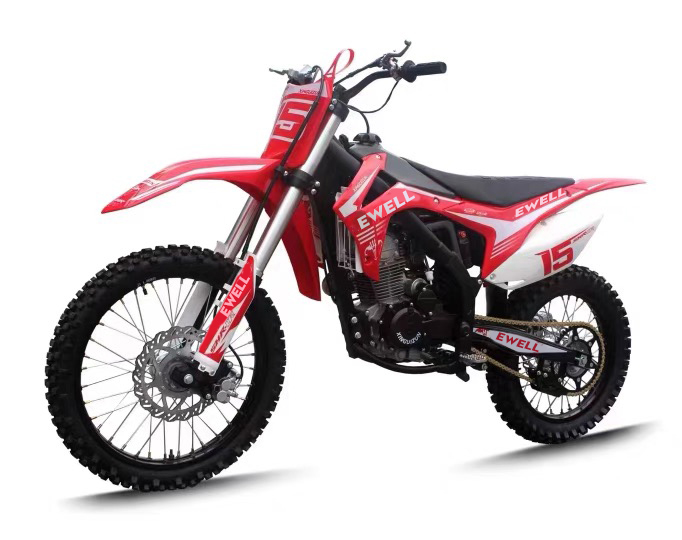

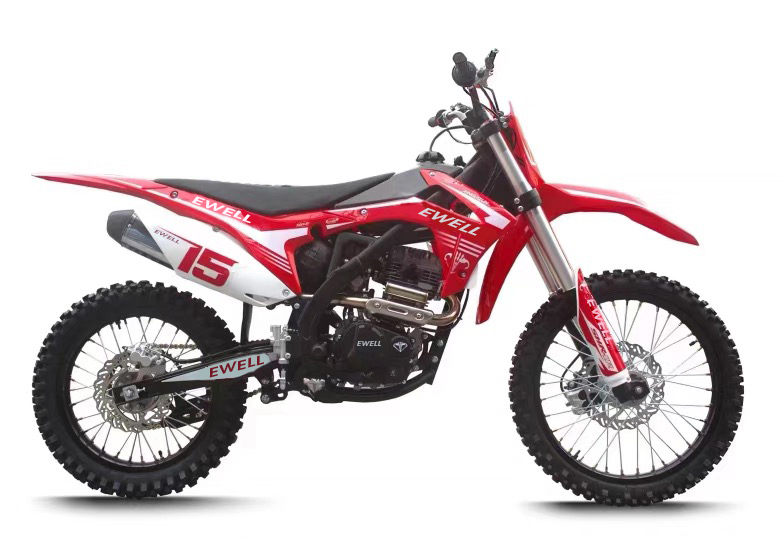

SHR-1R CB250D-G Chinese factory high-performance off-road motorcycles
Description："CB250D-G Engine Air Cooling, Four-Stroke"
Displacement：223cc
Maximum Power：12/7000 Kw/(R/Min)
Maximum Torque：17.5/5500 N.M/(R/Min)
Gear Shifting Method：Five-Speed Transmission
Frame：High Strength Steel Tube Frame
Muffler：Stainless Steel Exhaust Pipe, Aluminum Alloy Muffler
Front Suspension：Upside Down Singe-Adjustable Hydraulic Damping
Rear Suspension：External Airbag Central Shock Absorber, Dual-Adjustable Damping
Rim：High-Strength Aluminum Alloy
Tire：Front 80/100-21 Rear 100/90-18
Displacement：223cc
Maximum Power：12/7000 Kw/(R/Min)
Maximum Torque：17.5/5500 N.M/(R/Min)
Gear Shifting Method：Five-Speed Transmission
Frame：High Strength Steel Tube Frame
Muffler：Stainless Steel Exhaust Pipe, Aluminum Alloy Muffler
Front Suspension：Upside Down Singe-Adjustable Hydraulic Damping
Rear Suspension：External Airbag Central Shock Absorber, Dual-Adjustable Damping
Rim：High-Strength Aluminum Alloy
Tire：Front 80/100-21 Rear 100/90-18
| Model name | SHR-1R | |
| Engine | Description | CB250D-G Engine Air Cooling, Four-Stroke |
| Displacement | 223cc | |
| Bore*Stroke | 65.5*62.2mm | |
| Maximum Power | 12/7000 Kw/(R/Min) | |
| Maximum Torque | 17.5/5500 N.M/(R/Min) | |
| Compression Ratio | 9.3:1~9.9:1 | |
| Lubrication Method | Pressure Splash | |
| Clutch Type | Manual Wet Multi-Disc | |
| Gear Shifting Method | Five-Speed Transmission | |
| Ignition Method | CDI | |
| Start Method | Electrical/Kick Start | |
| Configuration | Frame | High Strength Steel Tube Frame |
| Muffler | Stainless Steel Exhaust Pipe, Aluminum Alloy Muffler | |
| Front Suspension | Upside Down Singe-Adjustable Hydraulic Damping | |
| Rear Suspension | External Airbag Central Shock Absorber, Dual-Adjustable Damping | |
| Front Brake | Hydraulic Dual Piston Pump Disk Brake | |
| Rear Brake | Hydraulic Single Piston Pump Disk Brake | |
| Swingarm | High Strength Metal | |
| Rim | High-Strength Aluminum Alloy | |
| Tire | Front 80/100-21 Rear 100/90-18 | |
| Battery | Colloidal Battery 12V6AH | |
| Basic Parameters | Vehicle Size | 2165mm*805mm*1225mm |
| Ground Clearance | 300mm | |
| Seat Cushion Height | 920mm | |
| Wheelbase | 1440mm | |
| Fuel Tank Capacity | 7L | |
| Net Weight | 110KG | |
