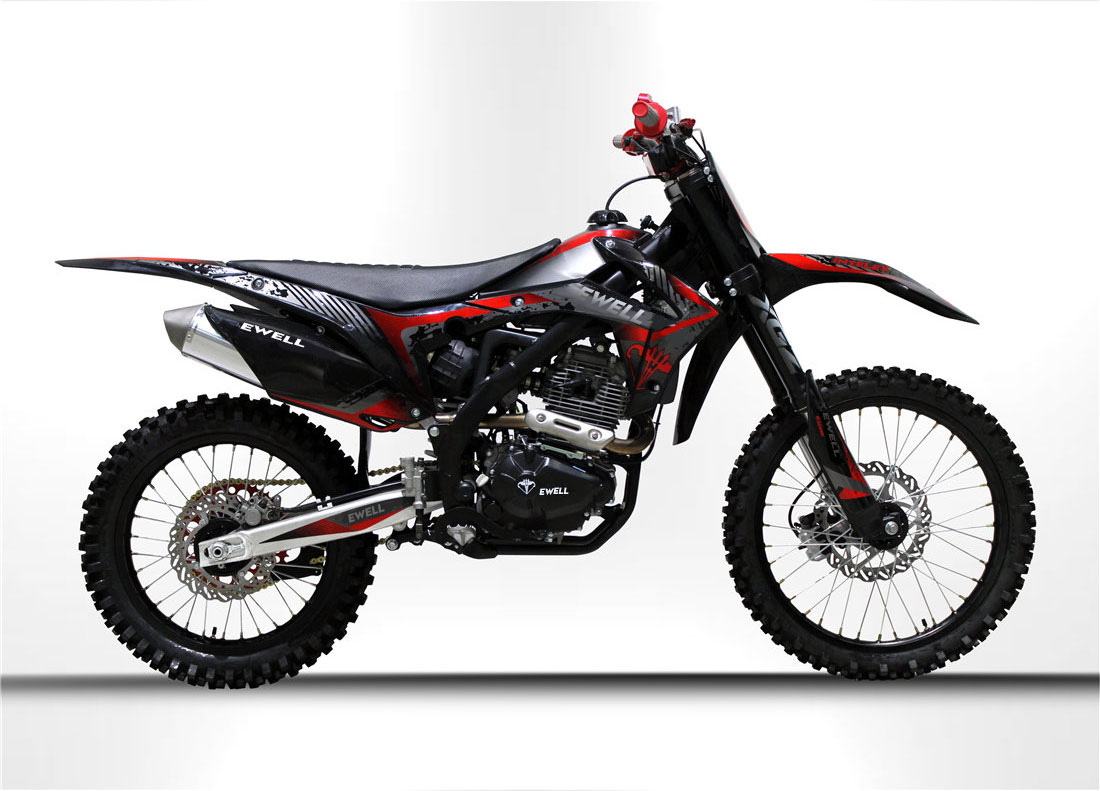

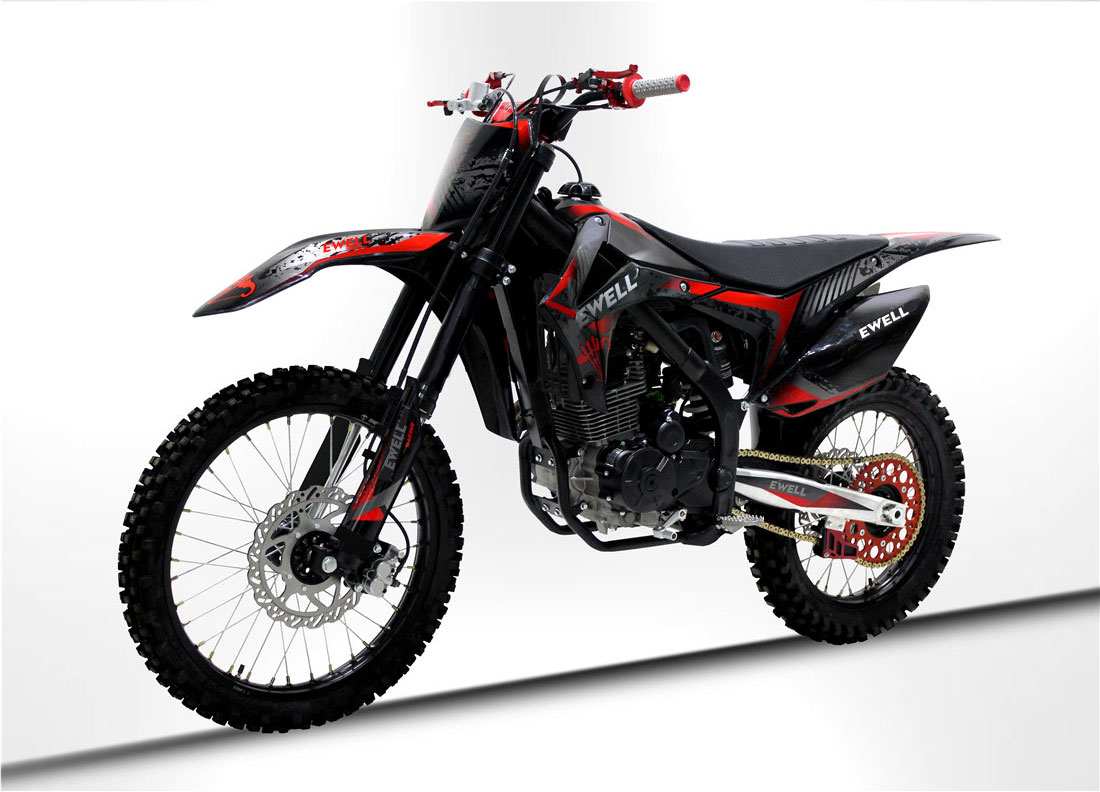

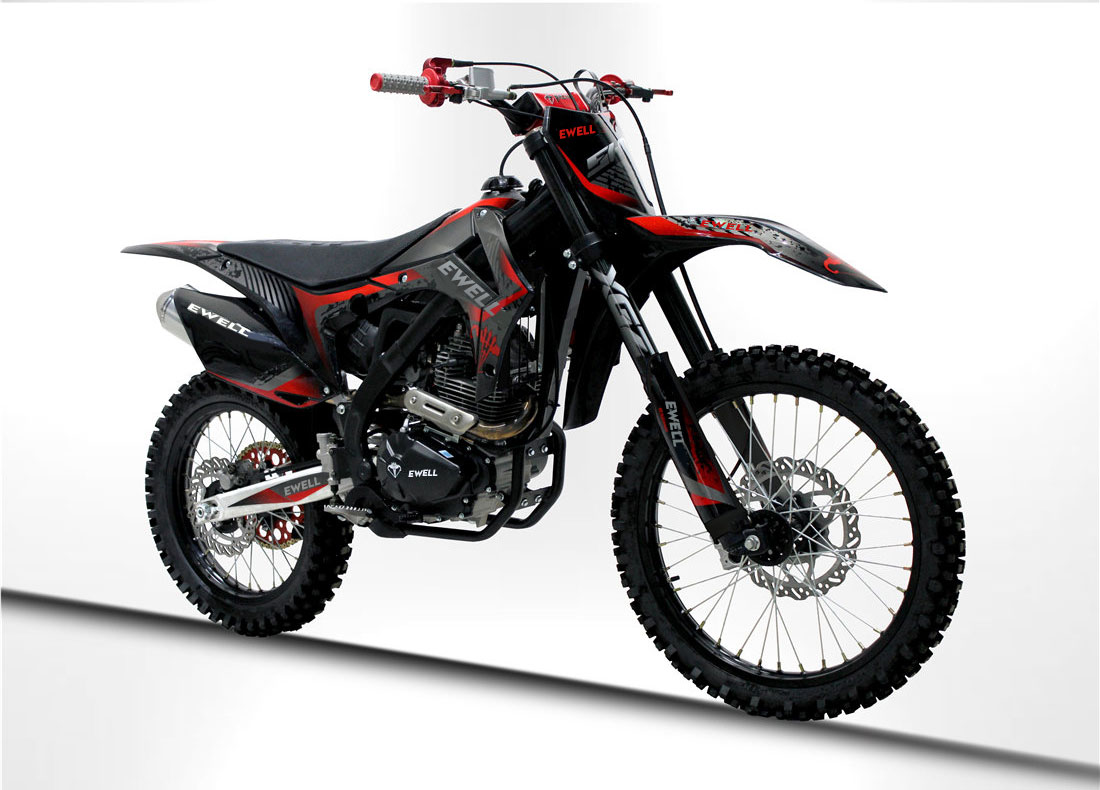

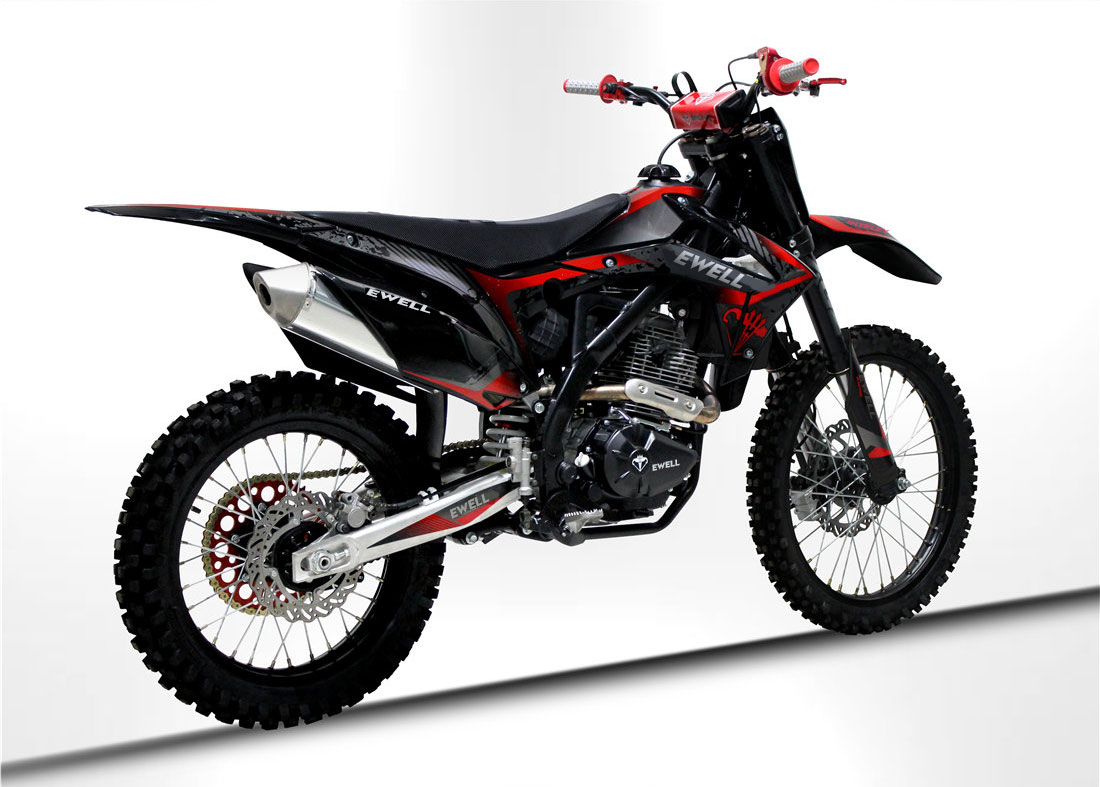

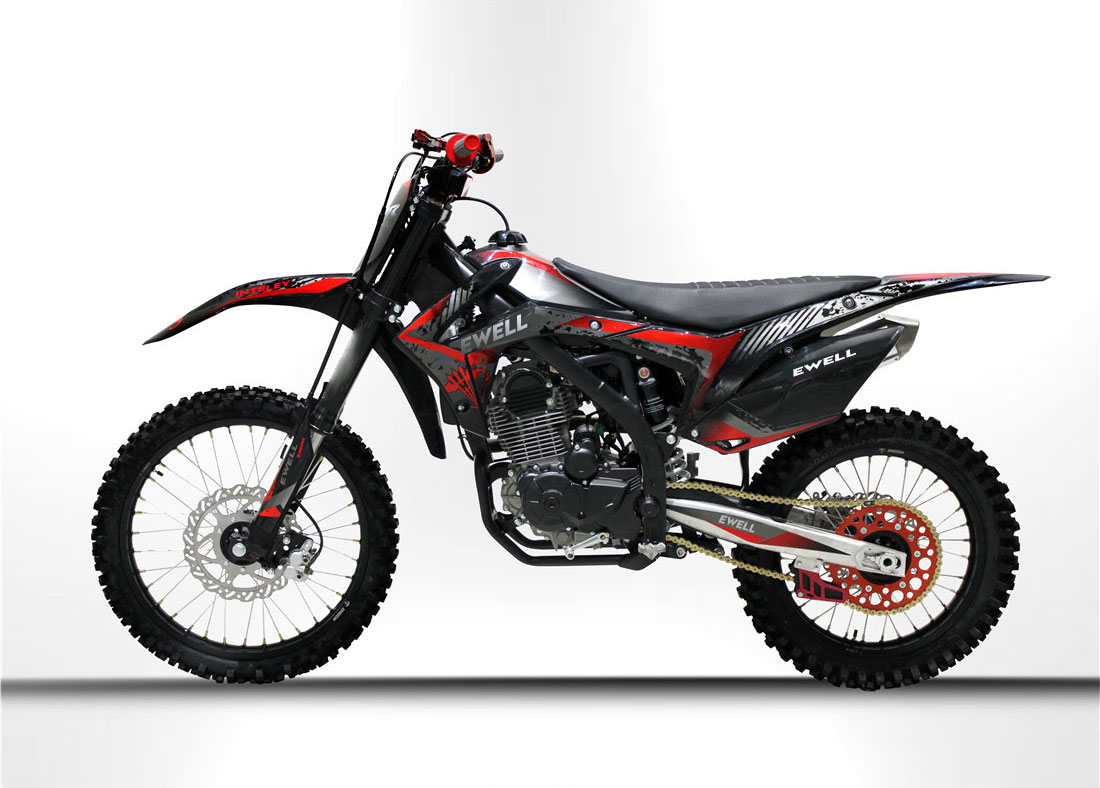

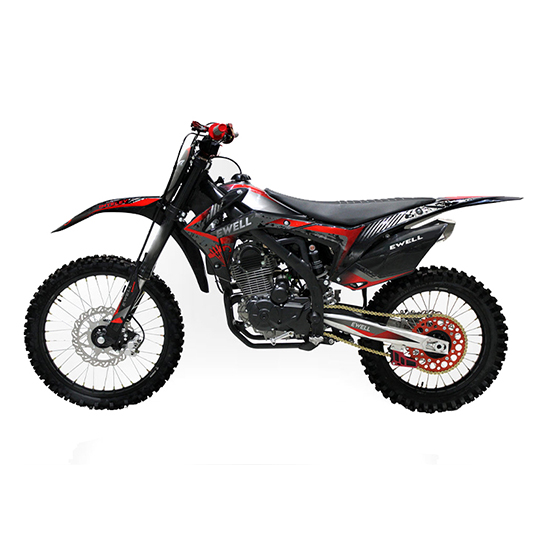

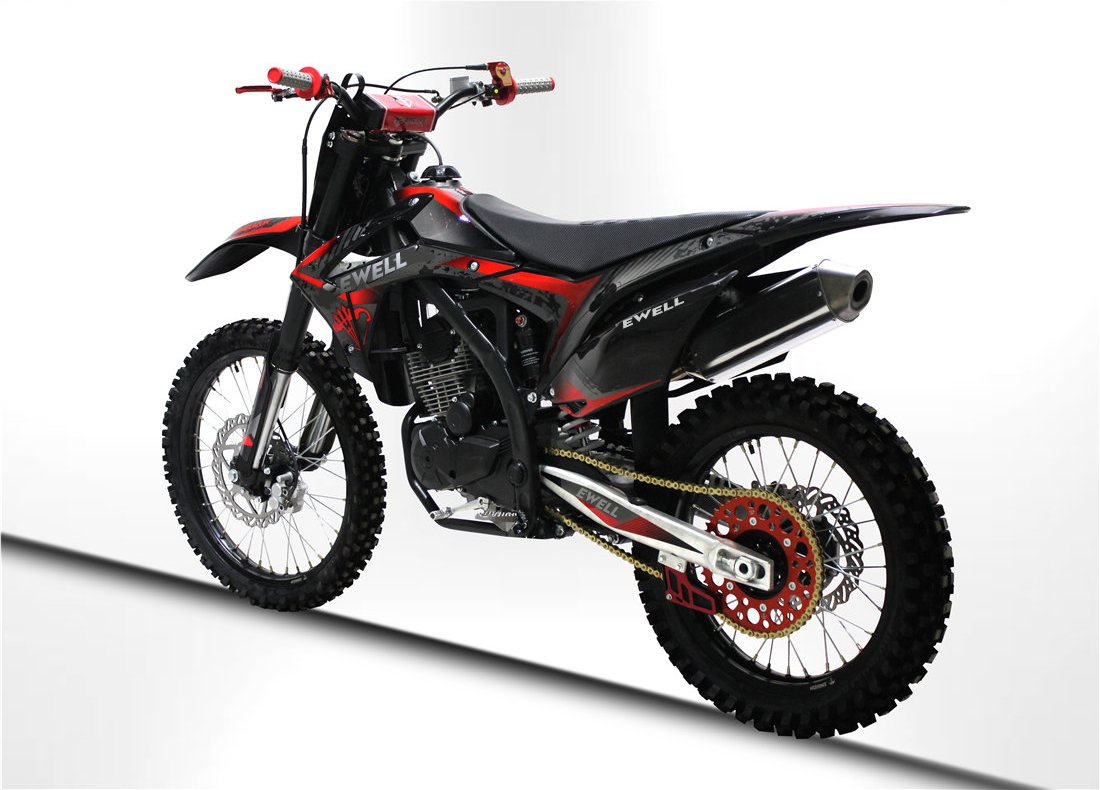

SHR-5 PR250 Engine Chinese factory high-performance off-road motorcycles
Description："PR250 Engine Four-Stroke, Air Cooling, Inclined Type"
Displacement：249.9cc
Maximum Power：14/8000 Kw/(R/Min)
Maximum Torque：18/6000 N.M/(R/Min)
Gear Shifting Method：Six-Speed Transmission
Frame：High Strength Steel Tube Frame
Muffler：Stainless Steel Exhaust Pipe, Aluminum Alloy Muffler
Front Suspension：Upside Down Dual-Adjustable Hydraulic Damping
Rear Suspension：External Airbag Central Shock Absorber, Dual-Adjustable Damping
Rim：7 Series High Strength Aluminum Alloy Ring CNC Drum Cor
Displacement：249.9cc
Maximum Power：14/8000 Kw/(R/Min)
Maximum Torque：18/6000 N.M/(R/Min)
Gear Shifting Method：Six-Speed Transmission
Frame：High Strength Steel Tube Frame
Muffler：Stainless Steel Exhaust Pipe, Aluminum Alloy Muffler
Front Suspension：Upside Down Dual-Adjustable Hydraulic Damping
Rear Suspension：External Airbag Central Shock Absorber, Dual-Adjustable Damping
Rim：7 Series High Strength Aluminum Alloy Ring CNC Drum Cor
| Model name | SHR-5 | |
| Engine | Description | PR250 Engine Four-Stroke, Air Cooling, Inclined Type |
| Displacement | 249.9cc | |
| Bore*Stroke | 72*61.4mm | |
| Maximum Power | 14/8000 Kw/(R/Min) | |
| Maximum Torque | 18/6000 N.M/(R/Min) | |
| Compression Ratio | 9.2:1 | |
| Lubrication Method | Pressure Splash | |
| Clutch Type | Manual Wet Multi-Disc | |
| Gear Shifting Method | Six-Speed Transmission | |
| Ignition Method | CDI | |
| Start Method | Electrical/Kick Start | |
| Configuration | Frame | High Strength Steel Tube Frame |
| Muffler | Stainless Steel Exhaust Pipe, Aluminum Alloy Muffler | |
| Front Suspension | Upside Down Dual-Adjustable Hydraulic Damping | |
| Rear Suspension | External Airbag Central Shock Absorber, Dual-Adjustable Damping | |
| Front Brake | Hydraulic Dual Piston Pump Disk Brake | |
| Rear Brake | KAILING Single Piston Pump Disk Brake | |
| Swingarm | High Strength Aluminum Alloy | |
| Rim | 7 Series High Strength Aluminum Alloy Ring CNC Drum Core | |
| Tire | Front 80/100-21 Rear 100/90-18 | |
| Battery | Colloidal Battery 12V6AH | |
| Basic Parameters | Vehicle Size | 2165mm*805mm*1225mm |
| Ground Clearance | 300mm | |
| Seat Cushion Height | 910mm | |
| Wheelbase | 1440mm | |
| Fuel Tank Capacity | 7L | |
| Net Weight | 114KG | |
